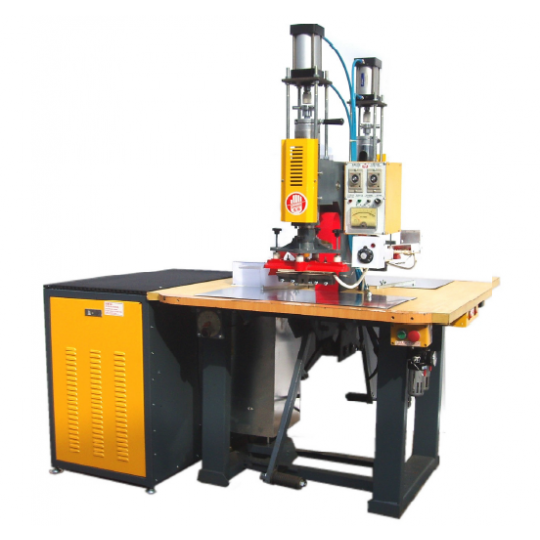

| 型號 Model | YW-8000FA |
| 電源電壓 Power Voltage | AC 220/380/400/415V |
| 輸入功率 Input Power | 12KVA |
| 定盤尺寸 Work Plate Size |
350*700MM / 400*800MM
|
| 振盪管 Oscillation Tube | 7T69RB |
| 高周頻率 Oscillation Frequency | 27.12MHz |
| 高周輸出 H.F. Output Power | 8KW |
| 機器淨重 Net Weight | 500KG |
特性/ Features：
利用絕緣布(紙)為介質,使被加工材料如PU, TPU皮、泡棉成型、鞋面成型或各式皮件在模具下, 接受工作電流穿透而讓自身材質分子產生劇烈運動, 模具形狀下定型, 或是多種材質分子相互滲透熔合成一體。
Use insulating materials as a medium to shape the unprocessed materials like PU, TPU, PU leather, PU forming, vamps shaping and other leathers under the shape of the mold by using penetration of electric current for molecular motion. Another method to shape the unprocessed materials into shapes is to gather different materials' molecular together penetrated and welded.
