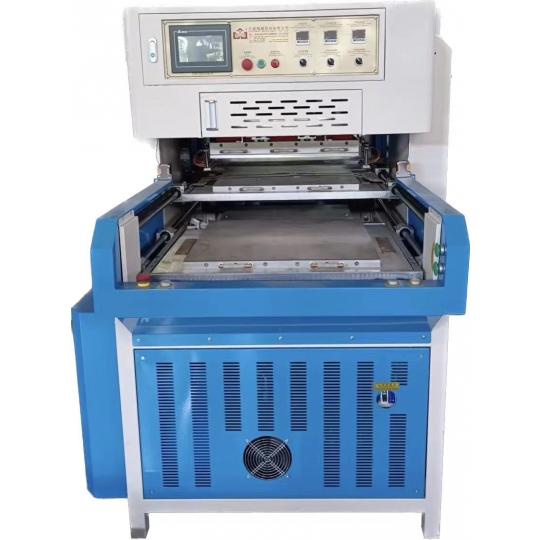

| 型號 Model | YW-8825HY-A |
| 輸入電源 Voltage | AC 220V/380V/415V/440V 3Φ |
| 輸入功率 Input Power | 50KVA |
| 最大壓力 Max. Pressure Force | 30T |
| 定盤尺寸 Work Plate Size | 600*520MM |
| 行程 Press Route | 250MM |
| 高周輸出 HF Output Power | 25KW |
| 高周頻率 Oscillation Frequency | 27.12MHz |
| 震盪管 Oscillation Tube | 8T25RA |
| 滿載電流 Full Load Current | 85A |
| 馬力 Horse Power | 5HP+1/4HP |
| 機器尺寸 Machine Size | 160*260*200 CM |
| 機器淨重 Net Weight | Approx. 1800KG |
特性/ Features：
1.本機有電流全自動追蹤系統，電流大小可以直接在螢幕上進行設定，上下層的電流可單獨設置。將目標電流輸入至設定後YW-8825HY-A將會自動追蹤電流數值並穩定在設定的電流內，無需人工手動調整同調器控制電流。
This machine is designed with auto-tracking system, current can be set individually (upper plate and lower plate) on the monitor. Once the current number is set in the setting, the auto-tracking system will start tracking the current and make sure it stays in the same current while the machine is operating. Thus, in this case, there is no need for operator to adjust the coherent individually while operating this machine.
2.YW-8825HY-A的上下層是各自單獨的設定，可依照產品的厚度進而分開設定。在設置好產品的厚度後，此機台可有效的控制產品的品質同時準確的加工並確保每片產品的成果厚度皆相同。
Based on the thickness of different materials, the setting of the upper plate and lower plate can be set differently. After keying in the thickness setting, YW-8825HY-A is able to work precisely based on the setting in order to have a good control the output quality.
3.本機可精準的控制產品裁斷的深度達到理想的裁斷效果, 同時大量減少對絕緣板的損耗。
This machine controls the cutting setting precisely in order to provide ideal cutting effects and reduce the chances of insulation board wearing.
4.本機采用PLC控制，時間準確，可精確到0.01秒，可有效提高生產出來的產品的品質。
This machine uses PLC controller, because of this, the time can be measured accurately up to 0.01 second. Thus, it produces great quality products with the PLC controller.
5.本機采用氣油壓混合加壓方式，具有加壓速度快、壓力調節範圍廣、無噪音等優點。
This machine uses pneumatic/hydraulic pressurized system, thus, it is noiselessness during operating. Moreover, the speed for it to pressurize is fast and the pressure adjusting range is wide.
6.本機具有裁斷功能，高周熔接與裁斷可一次完成，電腦化控制 , 數字化呈現 , 提高加工精密程度 。
This machine is designed with multi-functioning feature. It is able to do high frequency welding and cutting at once. Moreover, YW-8825HY-A adopts computerized interface and digitized control monitor. Since the entire machine's setting is digitized, it provides great output quality.
7.大工作面積 , 一次可以配排多量面料 , 增加單一次的加工數量 , 增加產能 。
Extra-large processing space allows operator to place large amount of input materials in one go, which increases productivity of processing line.
8.上下工作 台 的設計 , 減 去了等待加工的時間 , 在加工第一工作平台時 , 可擺上物料在第二平台上 , 增加生產量。
YW-8825HY-A contains two processing plates in order to increase the production since there is no waste of time on waiting during operation.
9.自動送料盤設計 , 減去人員的操作步驟 , 增加產量 , 更避免了人員自行操作可能潛在的危險。
This machine loaded materials automatically, thus operator can avoid potential harm by performing this action. Moreover, the productivity is raised by less procedure acted.
10.本機型裝有火花抑制系統 , 安全的保護加工物和模具 。
It adopts anti-flash system to protect input materials and the processing mold.
11.本機完整包覆 , 減低電 磁 波對操作人員和其他電子設備的干擾。
Radiation is reduced by well covered structure of the machine, both operators and digital device won't be affected.
