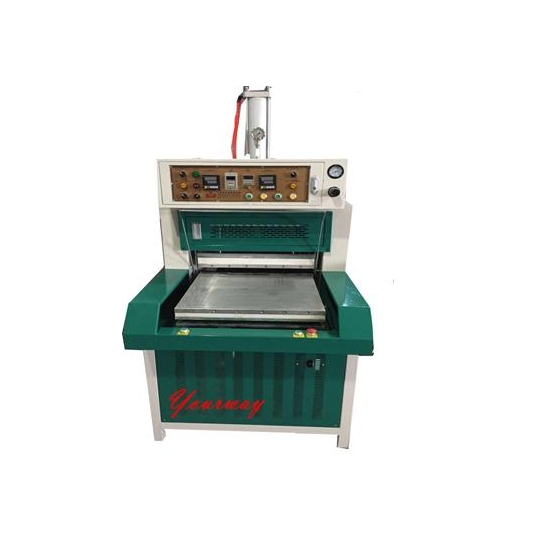

| 型號 Model | YW-809H |
| 功率 Power | 15KW |
| 電壓 Power Voltage | 380V |
| 工作面積 Work Plate Size | 600*500MM |
| 最大壓力 Max. Pressure Force | 12T |
| 機器毛重 Gross Weight | 700KG |
用途/ Purposes :
• 本機適用於各種鞋面無車縫熱壓貼合, 4D 鞋面貼合
This machine is used for hot pressing shoes vamp and laminating without sewing. It is also used for 4D laminating.
特性/ Features :
1. 用環保增壓缸設計, 節省液壓油的使用。
The Air-Oil converting cylinder used is highly economical and environmental friendly, as it requires less usage of Hydraulic Oils.
2. 上下板加熱, 下板自動進出, 熱壓效率高。
This machine gives heat from both upper the lower plates. Besides this, the lower processing plate automatically feeds materials for higher productivity and safer work environment.
3. 上下層獨立數顯溫設計, 溫度精確。
There are separate SCR on both the upper plate and lower plate, thus the operators are able to control the temperature accurately.
