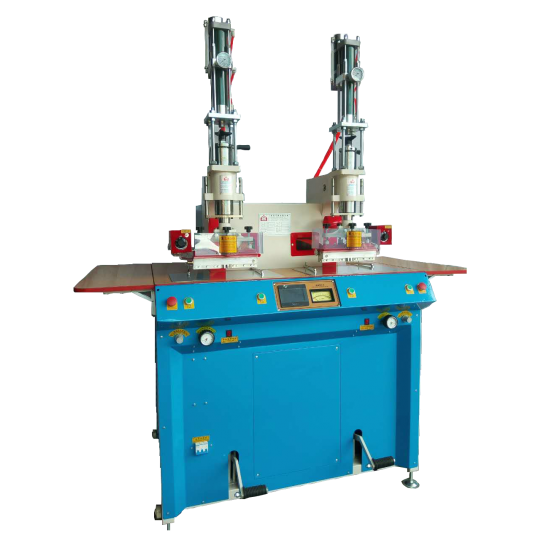

| 型號 Model | YW-868SHY-PLC / YW-1068SHY-PLC/ YW-1268SHY-PLC |
| 電源壓力 Voltage | AC 220V/380V/415V/440V 3Φ |
| 輸入功率 Input Power | 12KVA/15KVA/ 20KVA |
| 最大壓力 Max. Pressure Force | 1.8T |
| 定盤尺寸 Work Plate Size | 500MM*300MM |
| 機器淨重 Net Weight | 540KG/ 570KG/ 600KG |
| 機器毛重 Gross Weight | Approx. 620KG/ 650KG/ 680KG |
| 高周輸出 HF Output Power | 8KW/ 10KW/12KW |
| 高周頻率 Oscillation Frequency | 27.12MHZ |
| 振盪管 Oscillation Tube | 7T69RB/ E3039/ E3130 |
特性/ Features：
1. 新增的數控室螢幕不只讓操作人員在使用上更方便, 也讓安裝位子更順手, 人性化。
The new deigned touchscreen device helps the operators to use this machine in an easier way. In addition to this, with the updated design of this machine, operators are able to install better.
2. 站立性的操作: 保持操作人員的機動性, 加速加工流程, 提高效率。
This machine is a stand-operate version of welding machine. The purpose of this design is to keep operators’ flexibility during operating process. With this design, both production and efficiency will increase due to the reason that operators are able to act quickly.
3. 裝置火花抑制系統, 不產生火花現象. 保護本機, 內部零件, 面料。
The anti-flash system installed design protects machine itself and the input materials.
4. 本機採用PLC電腦控制面板, 內有下降時間, 高周時間, 冷卻時間和高周次數設定, 提供了更精密的操作設定和加工的精密度。
This machine is controlled by PLC. It contains a computer monitor for various setting. For instance, welding time setting, cooling time setting, weld time-counter, etc. With both computer monitor and PLC, operators are able to change the setting based on different types of material in order to have high quality outputs.
5. 本機自動輸出高周, 減低操作人員疲勞, 與加快加工速度。
After setting required data on the monitor, this machine will shift the press function, the high frequency and the cooling-time function automatically during operation. It minimizes operators’ fatigue and speeds up the process.
